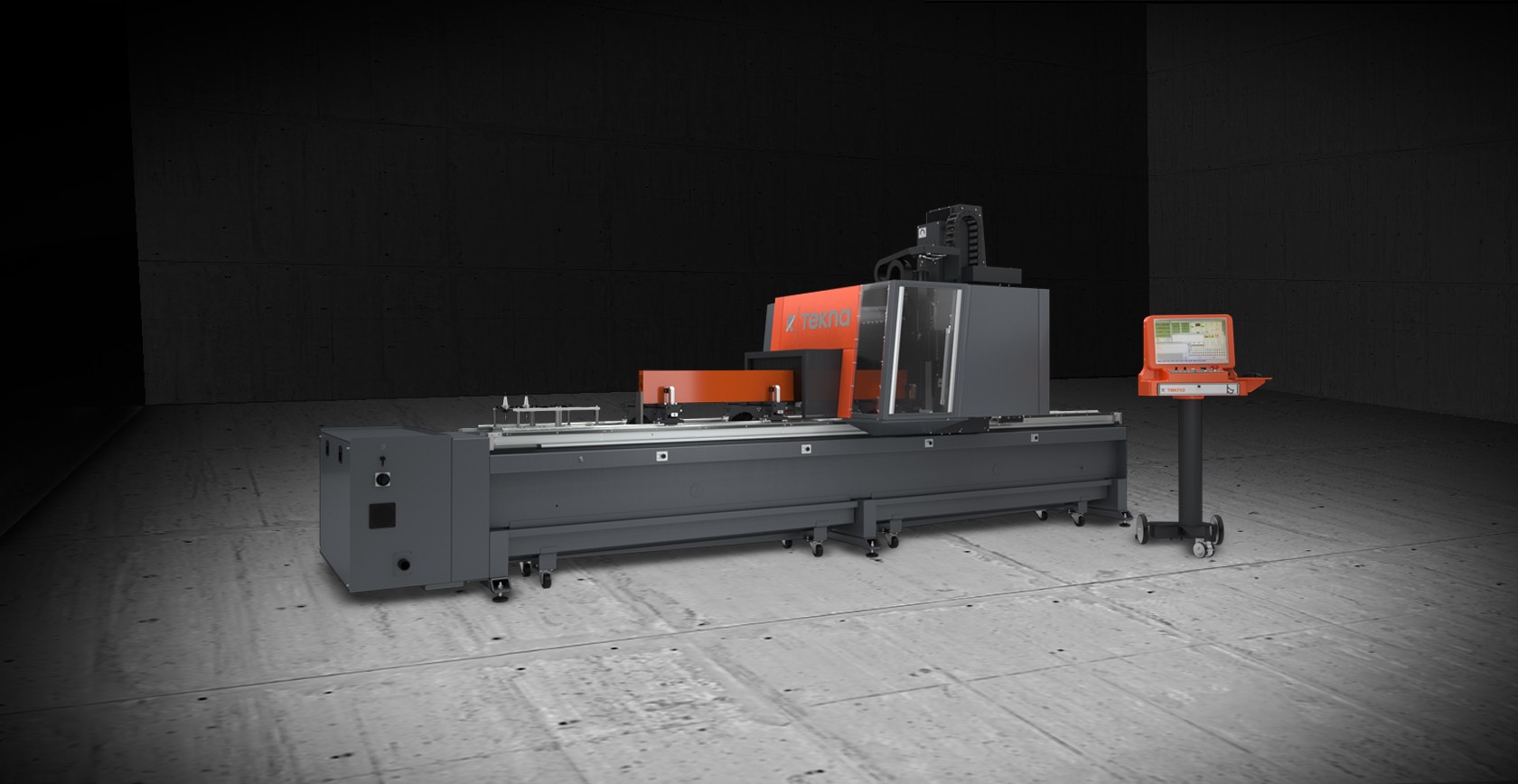

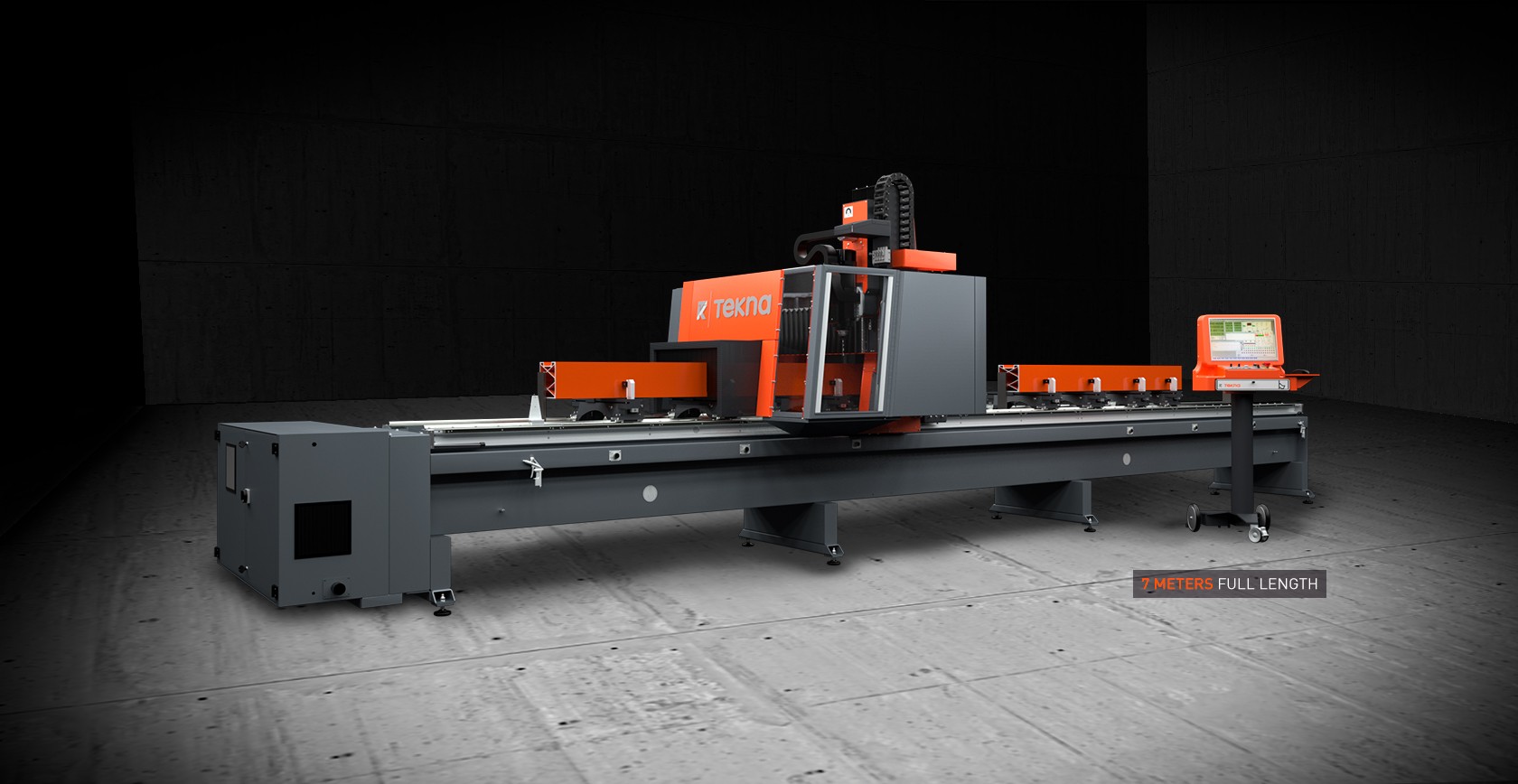

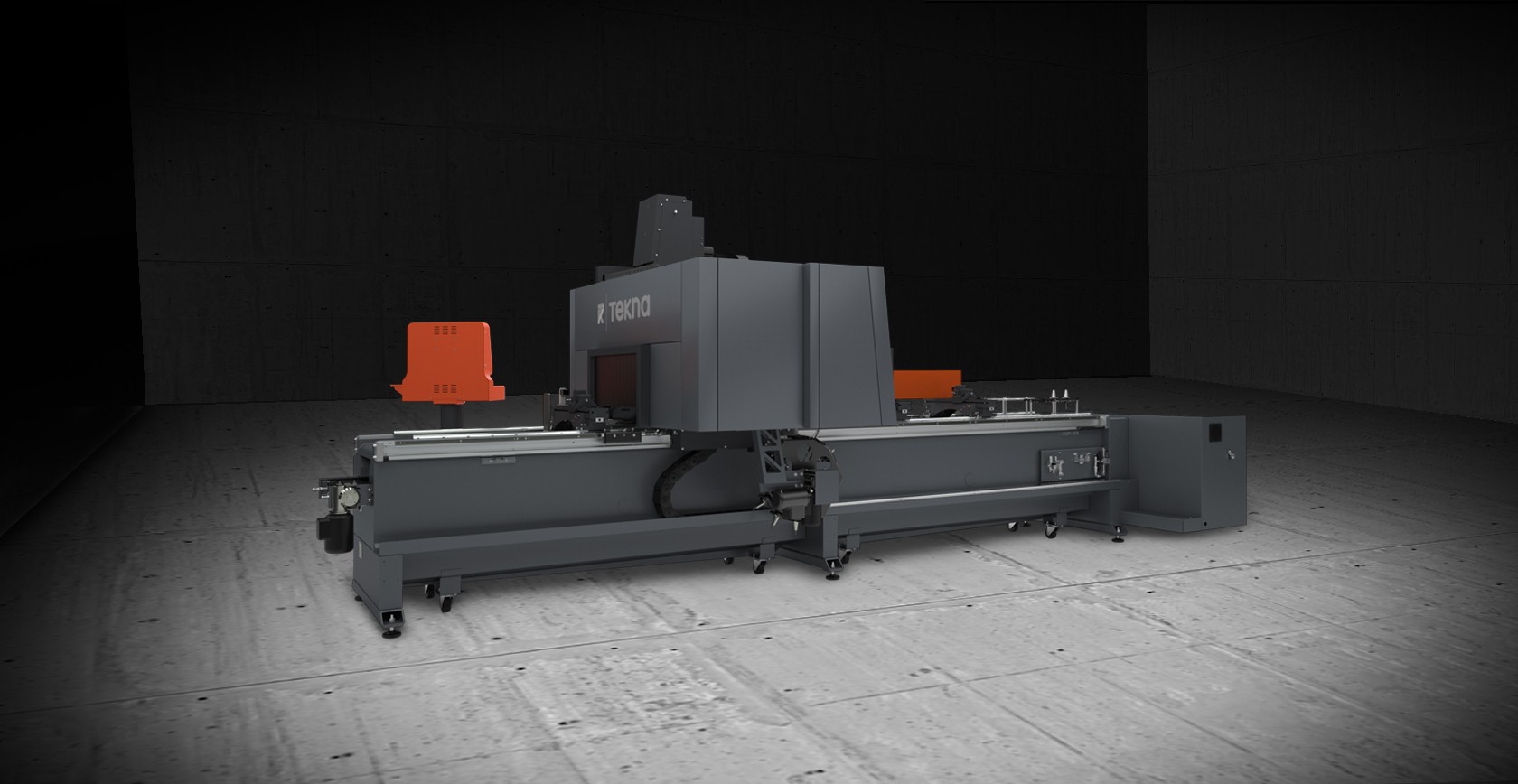

TKE 944

4-axis CNC machining centre with moving gantry structure, designed for drilling, milling, threading at any angle from -90° to +90° on bars or workpieces of aluminium, PVC, light alloys in general and steel. The 8,5 kW electrically-driven spindle with ISO 30 tool holder allows machining operations, including heavy-duty work, with optimum results in terms of speed and accuracy.

The machine can be used in double mode (7000 model) so as to minimize machine downtime, as it is possible to change the workpiece (load/unload) in “cancealed” time. It is also possible to load and consequently machine different workpieces between the two working areas. The automatic tool magazine is available in a fixed solution on board the machine with 4/8 places, recommended for multi piece machining. Also available a 12-place automatic magazine on board the carriage, ideal to allow a faster tool change and useful for the double mode machining. The gantry is provided with a guard which, besides protecting the operator, also reduces the noise impact on the environment.

Technical data arrow_drop_down
C axis positioning increases
C AXIS (vertical-horizontal rotation of the head)
-90° ÷ +90°
Z AXIS (vertical) (mm)
Y AXIS (transversal) (mm)
X AXIS (longitudinal) (mm)
4.000 ; 7.000
Air cooling with electric fan
Toolholder cone (Tekna special piece)
ISO 30
Maximum torque (Nm)
Maximum speed (rpm)
Maximum power in S1 (kW)
Automatic 12-place tool magazine on board the gantry (**)
Number of angle machining heads which can be loaded onto the automatic magazine
Maximum size of tools which can be loaded onto the revolver magazine (mm)
Ø = 180 ; L = 200
Fixed left 4-place tool magazine
Maximum size of tools which can be loaded onto the 7-place magazine (mm)
Ø = 180 ; L = 200
Number of angle machining heads which can be loaded onto the 7-place magazine
Fixed left 7-place tool magazine
Maximum size of tools which can be loaded onto the 4-place magazine (mm)
Ø = 120 ; L = 180
Additional fixed left 4-place tool magazine
Maximum size of tools which can be loaded onto the revolver magazine (mm)
Ø = 180 ; L = 200
Number of angle machining heads which can be loaded onto the automatic magazine
Automatic 12-place tool magazine on board the gantry (**)

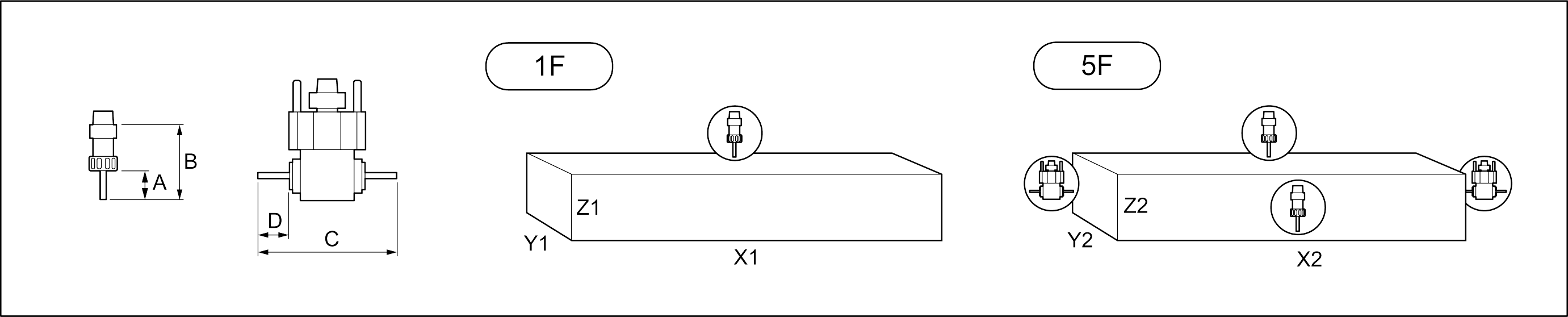

With angular head (top face, side faces, ends)
1 + 2 + 2
With direct tool (upper face, side faces)
TAPPING CAPACITY (with tap on aluminium and through hole)
With compensator
Presetting tool device: automatic on-machine tool length measurement
Multi-piece and multi-piece swing mode machining
Static double mode operation (only model TKE 944-7000)
Extended machining, up to twice the maximum nominal length in X
Parallel machining of two profiles (*)
Workpiece reference pneumatic side stops (4,000– 7,000)
1 – 2
Maximum number of reference pneumatic stops
Additional pneumatic side stop with separate vice control system (version 4,000)
Local guarding cabin
Metal enclosure guard on two sides
Photoelectric barrier system to protect access to work zone
Standard number of pneumatic vices (4,000 - 7,000)
4 – 8
Maximum number of pneumatic vices (4,000 - 7,000)
12 – 16
Maximum number of vices per area (model TKE 944-7000)
Separate vice control system for multi-piece mode machining
Maximum size in Y of the workpiece which can be clamped with 2 standard terminals of 40 mm for three-face machining operations (mm)
Double horizontal hold-down devices on pneumatic vices for the machining of two parallel profiles
Automatic vice positioning through X axis
Maximum workpiece size in Y that can be locked in the standard vice (mm)
Centralised automatic lubrication of recirculating ball sliding blocks
Additional automatic filling system of the minimal lubrication system - capacity 15 litres
Tool minimal pressurized oil diffusion lubrication system
Electrospindle controlled on 4 axes with the possibility of simultaneous interpolation
Gantry structure
Dimensional profile measurer

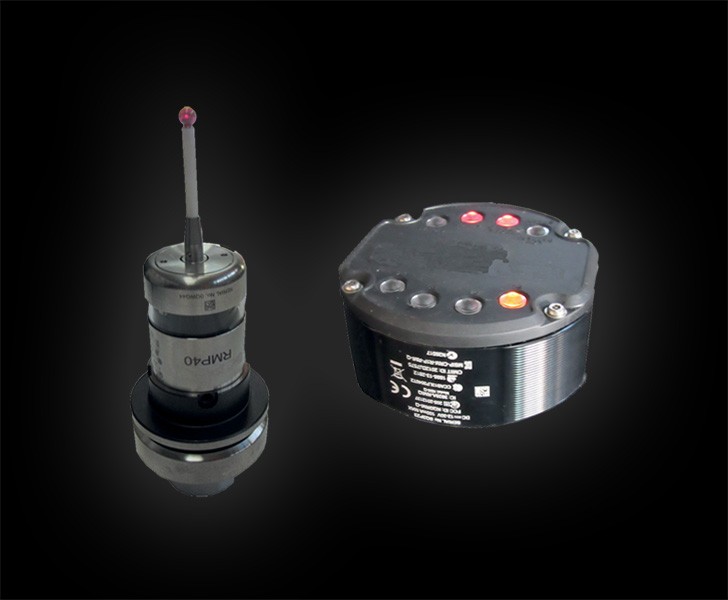

The machine can be optionally equipped with an electronic device that automatically corrects workpiece dimensional errors in length, width and height. In this way, the accuracy of the machine is not influenced by the differences between theoretic and actual workpiece dimensions during machining. This device accurately probes the rough workpiece in several positions, correcting the machining along its whole length, even with deformed or warped profiles.

TKE 944 Dimensional profile measurer Tekna
TKE 944 Electric head Tekna
Electric head

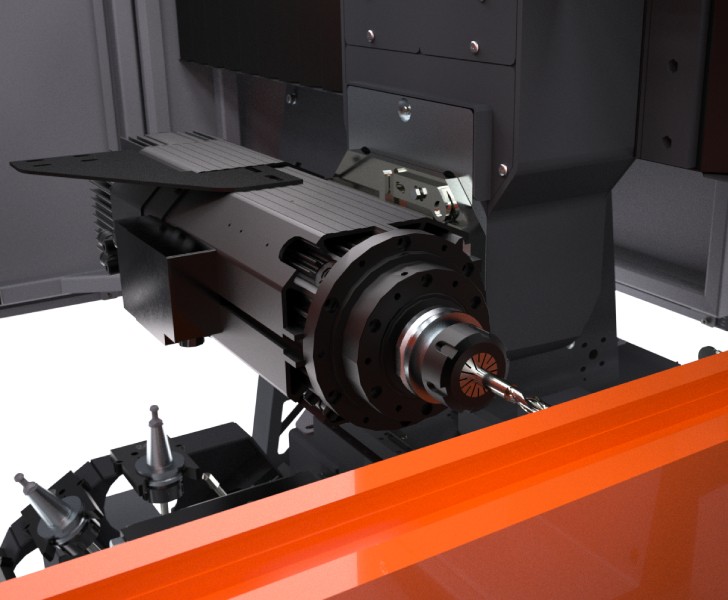

8.5 kW S1 high torque electrospindle allows heavy duty machining. The electrospindle movement along C axis allows performing rotations s from - 90° to + 90°and working on 3 sides of the profile with no need to reposition it. It can be used both with some types of extruded steel and with aluminium profiles, thanks to the lubrication system with oil emulsion spray mist or, as an option, with minimal diffusion oil.
Tool magazine

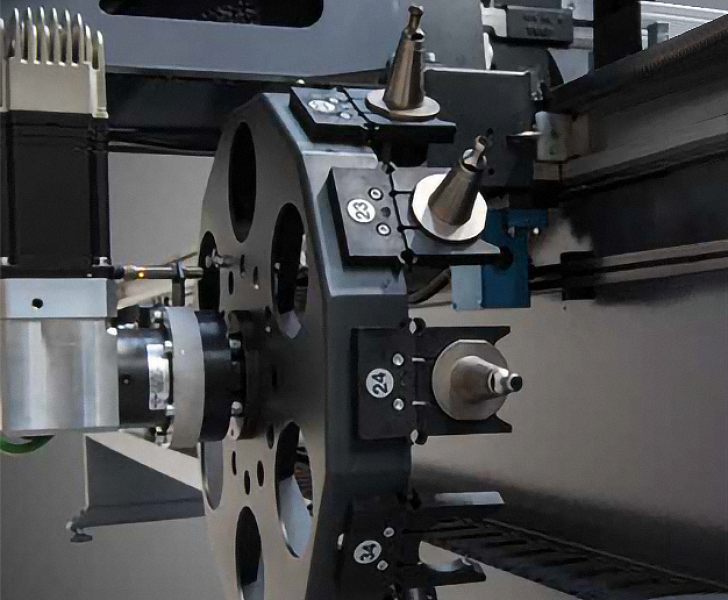

The automatic tool magazine comes in two different configurations. The first has one or two fixed 4-place magazines installed on the left-hand side of the machine and is specific for operation on a single work area in single or multi-piece mode. The second configuration excludes or integrates the fixed magazines, with an automatic 12-place magazine installed on the carriage moving on the X axis. This solution, required for machining in double operation mode (mod. 7000 mm only), considerably reduces the tool change times and consequently increases the machine productivity and efficiency.
TKE 944 Tool magazine Tekna
TKE 944 Vices Tekna

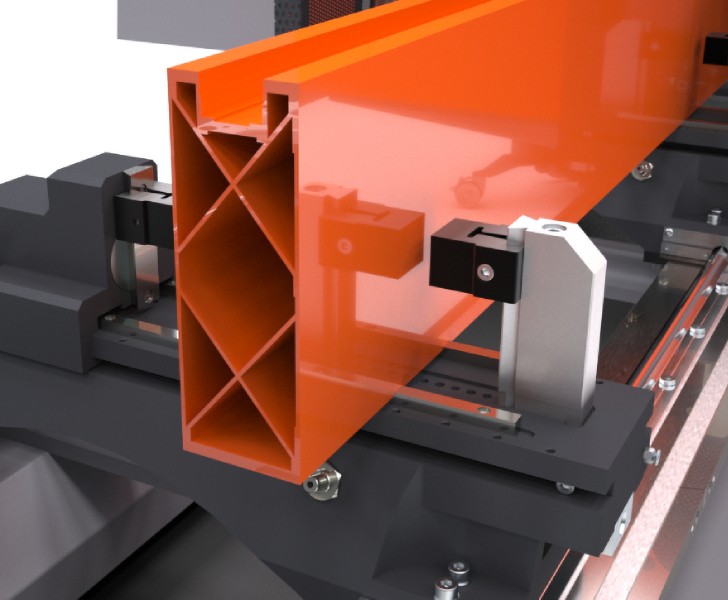

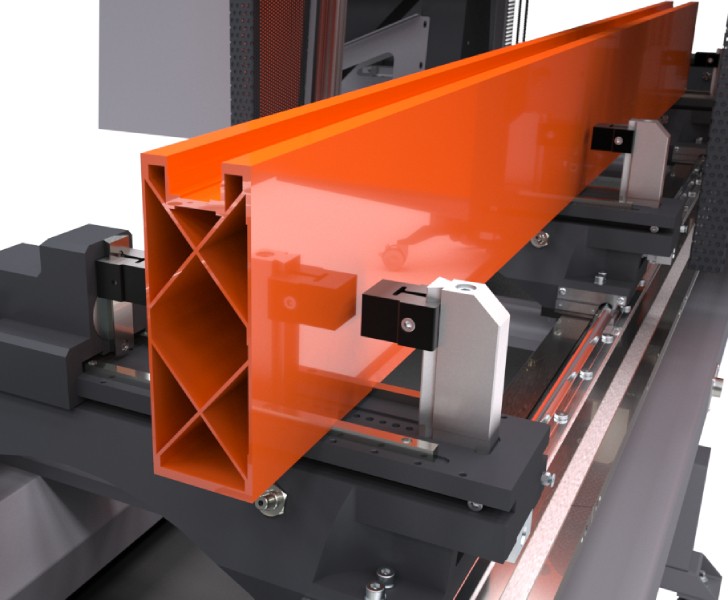

The vice unit can ensure the correct and safe clamping of large aluminium, steel and light alloy profiles. The vice size and the long Y stroke of the electrospindle allow machining large profiles for all kinds of civil and industrial applications. Each unit slides on special linear guides on machine surface. The positioning is managed by the X axis. Counterblocks can be mounted quickly and accurately, making the machine extremely versatile. The vice unit is available optionally in double hold-down device version to machine two profiles in parallel.
Profile positioning

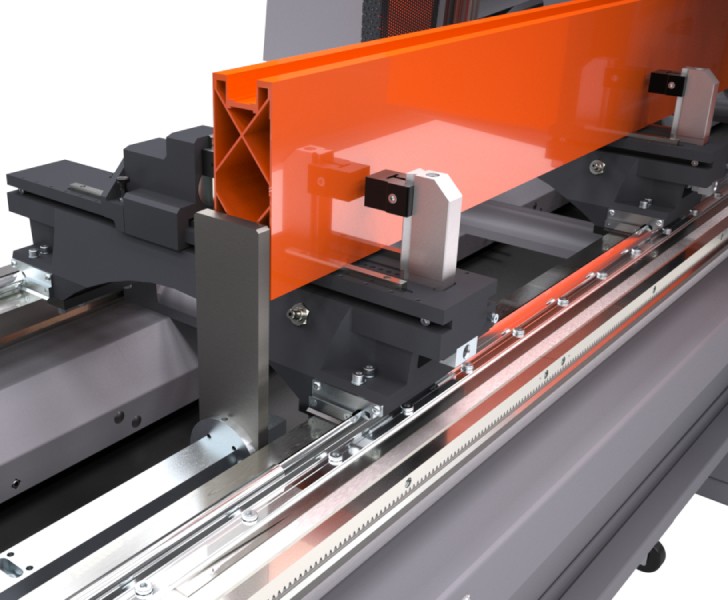

The machine is equipped with two sturdy and precise retractable manual reference stops, used to machine one or two profiles in multi-piece or double operation mode (model 7,000 only). A laser system is available for accurately positioning the workpieces on the work surface; it reads each profile and sets the reference without the need for mechanical stops.
TKE 944 Profile positioning Tekna
