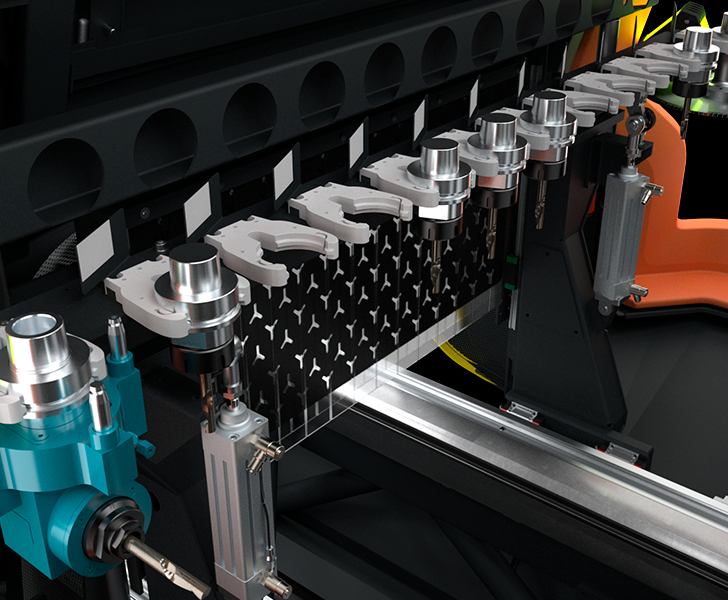

A spacious toolholder magazine with 13 places is installed on board the mobile gantry. The housing includes a tilting system that ensures maximum protection of the toolholder cones from both swarfs and accidental impacts. The magazine has two specific positions to accommodate angle machining head or disc cutter without reducing the total capacity.
TKE 954
Mobile gantry 4-axis CNC machining centre for drilling, milling and tapping, at any angle from -90° to +90°, on profiles and plates with a thickness up to 10 mm if made of aluminium, lightweight alloys and PVC and up to 2 mm if made of steel. The mobile part of the machine is composed of a dual drive gantry on a high precision rack. The local guarding cabin, made of technopolymer, has been designed to offer optimal functionality, accessibility, soundproofing and lighting while fulfilling safety and ergonomics requirements. Large glass windows allow the operator to monitor the machining operations being executed, as well as an easy access during cleaning and maintenance phases. The inside of the cabin ensures the conveying of swarf into the collection system available at the base. The 8,5 kW electrospindle allows performing machining operations, even heavy-duty ones, with optimal results in terms of speed and precision. The 13-place tool magazine, integrated into the mobile gantry, features two special positions, one for a blade with a maximum diameter of 250 mm and the other for the angle machining head. It features two different operating modes: the first, in single-area mode, allows machining entire bars having a maximum length of 7 or 9 m in a single work area; the second one, in double machining mode, allows machining several workpieces in the two different work areas. In the version with system for moving vices on H and P axes, it is possible to use the machine in dynamic tandem machining mode; this operating mode allows reducing machine downtimes to a minimum, since it allows the vices to be automatically set, in concurrent operation time, to the operation processes of the spindle in the opposite work area. TKE 954 is equipped with a laser scanner allowing the most precise and advanced control of the machine front access, raising safety and operator/machine interface standards. In double machining mode, the laser scanner allows programming asymmetrical work areas on X axis so that workpieces having different sizes can be machined by making use of 4 different set-ups, in order to increase the machine operation flexibility.
Tool magazine

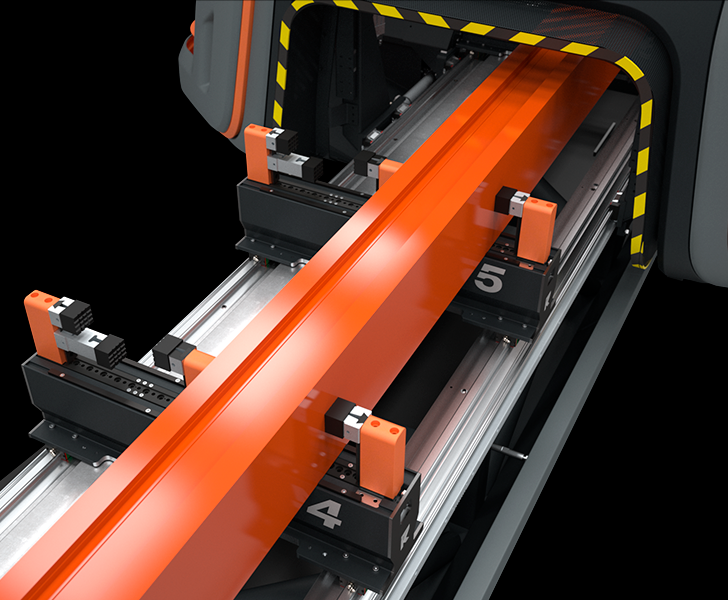

Vices and dynamic tandem
The vice unit can ensure the correct and safe clamping of large aluminium, steel and light alloy profiles. The vice structure, in particular the wide Y stroke, allows the machining of large profiles, thus meeting the typical requirements of industrial and door applications.

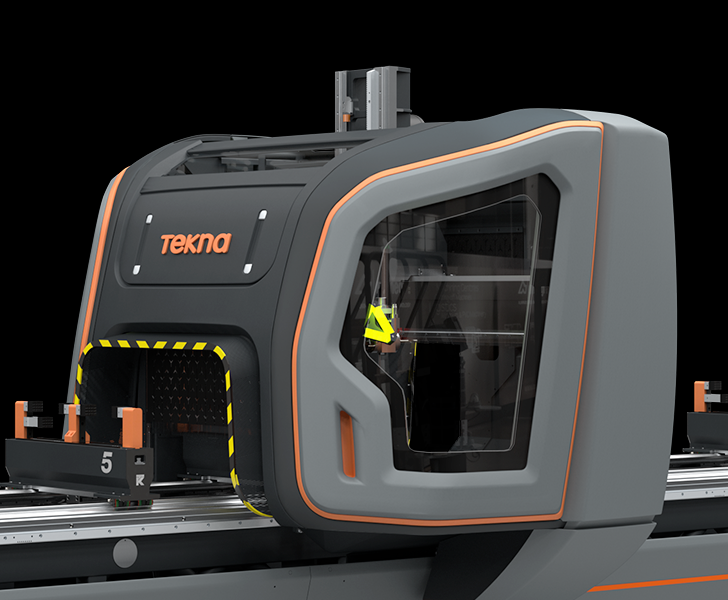

Full protection cabin
The local guarding cabin has been designed to offer optimal functionality, accessibility and lighting while fulfilling safety and ergonomics requirements. The innovative and refined design makes the machine unique and unmistakeable. Large glass windows allow the operator to monitor the machining operations being executed and a large access to internal areas is provided for cleaning and maintenance operations.

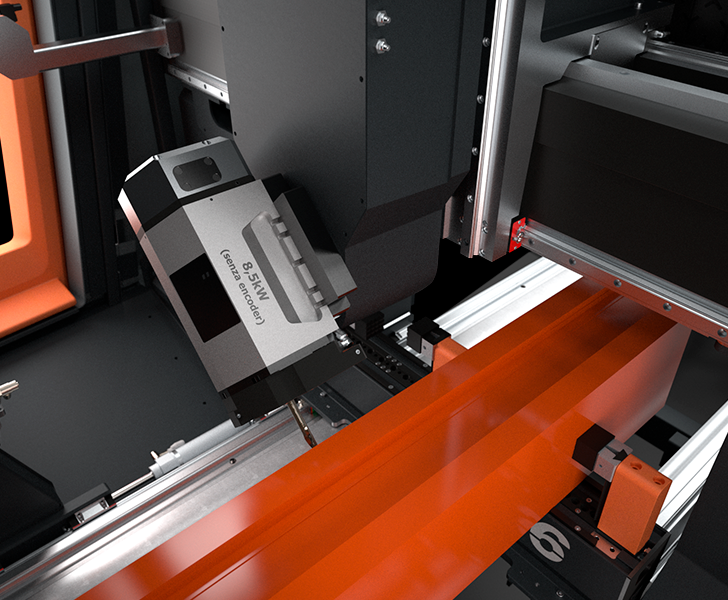

Electric head (high-power and high-torque spindle)
The electrospindle - 8.5 kW in S1 - with HSK-63F toolholder and water cooling with chiller unit, can also perform the heavy-duty machining typical of the industrial sector. Moreover, the high torque ensures easy drilling, milling and cutting operations. The electrospindle movement along B axis performs -90° to +90° rotation, allowing to work on 3 sides of the profile with no need to reposition it. A 11 kW electrospindle with encoder for heavy-duty machining is available as optional.

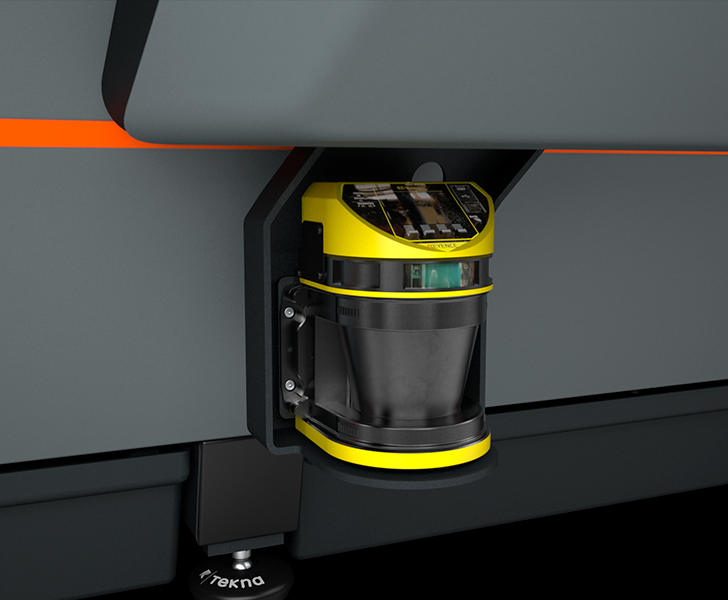

Laser scanner
The protection of the operator is entrusted to a monitoring system of the work area with laser scanner. This intelligent control system, together with the absence of fixed references at the centre of the machine, is specially useful in double operation mode, since it allows managing the two work areas with a variable set-up, even asymmetrical. The laser scanner will adapt the controlled surface to the size of each zone, allowing workpieces of different lengths to be machined and taking advantage of the available work area without special structural limitations.
Label printer (Optional)
The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.
