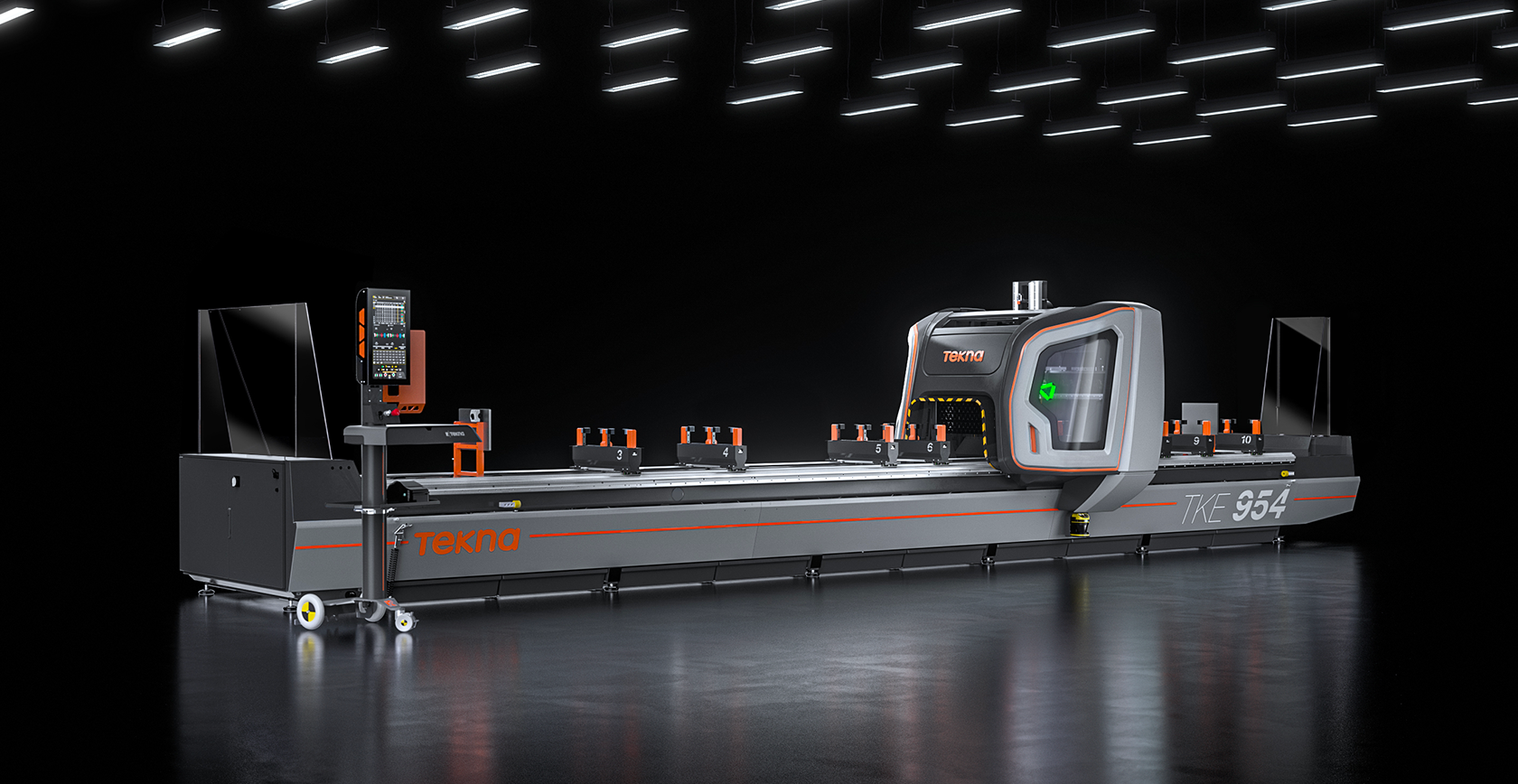

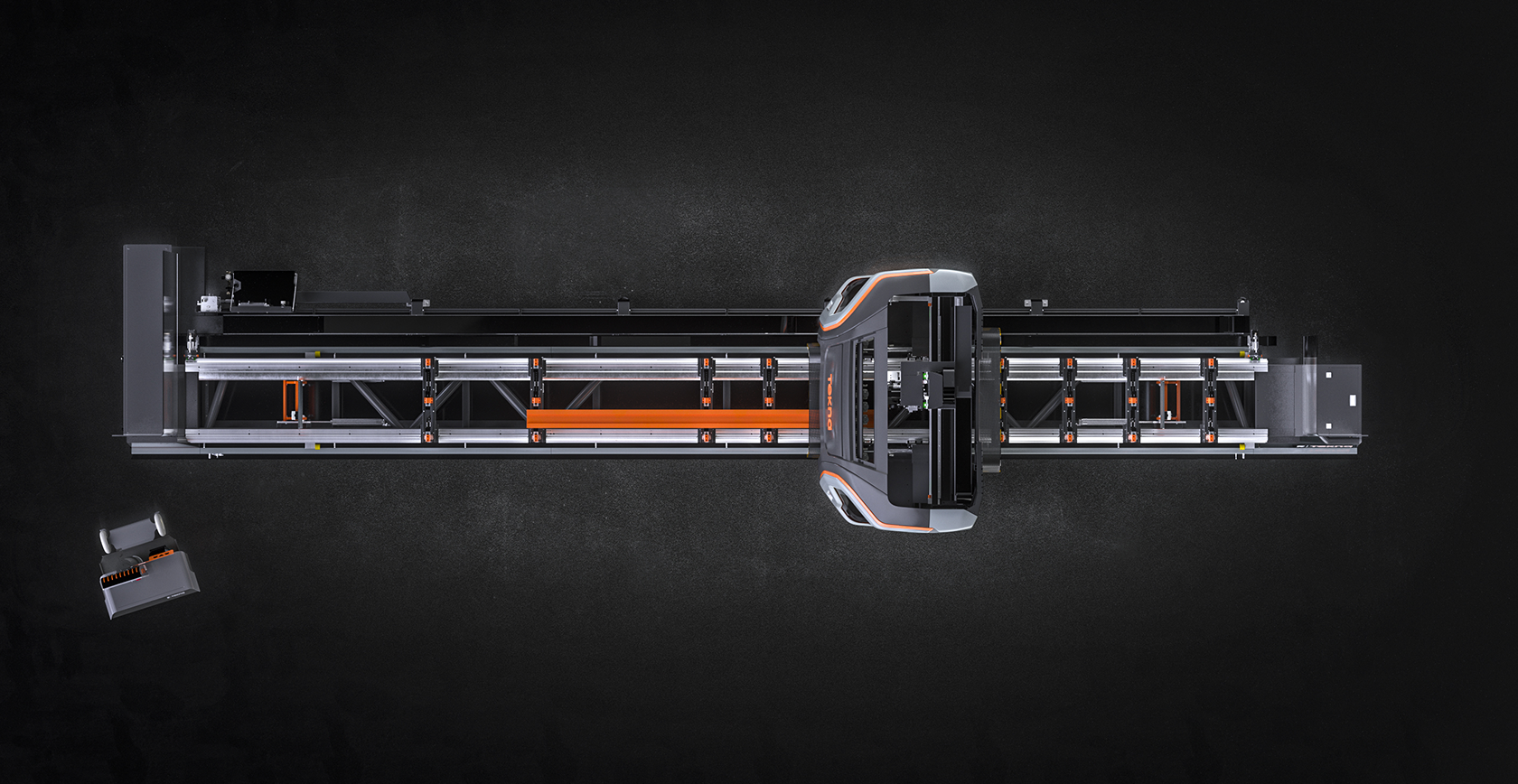

4-axis CNC mobile gantry machining centre, designed for drilling, milling and threading at any angle from -90° to +90° on bars or pieces in aluminium, PVC, light alloys and steel up to 2 mm thickness. The mobile part of the machine is composed of a gantry with double gantry motorisation on a high precision rack The local safety cab, made in technopolymer, was designed to combine top functionality, accessibility, soundproofing and light with safety and ergonomic requirements. The operator has broad glazed surfaces to check machining execution and easy access during cleaning and maintenance. Cab interior ensures chip conveying to the collection system available in the base. The 8.5 kW electrospindle is able to perform even heavy-duty machining with excellent, rapid and accurate results. The 12-place tool magazine, integrated into the mobile gantry, features two dedicated positions for holding a blade with a maximum diameter of 250 mm and an angular machining head. It includes two different operating modes: the first one, in single-zone mode, for machining whole bars in a single working area, up to 7 m long; the second one, in double operation, for working on multiple workpieces in the two separate working areas. In version with clamp handling system on H and P axes, the machine can be used in dynamic double operation, a work method that enables reducing machine stop times to a minimum, as it enables automatic arranging of the clamps in concurrent operation time with respect to the spindle machining processes in the opposite working field. TKE 954 features a laser scanner for more precise and advanced access control to the machine, raising safety and operator/machine interface standards. In double operation, the laser scanner, unlike the light curtains, allows, from time to time, the appropriate programming of the two separate working areas on the X-axis, increasing the flexibility of use of the machine.

Technical data arrow_drop_down
AXIS STROKES
Y AXIS (transversal) (mm)
1230
Z AXIS (vertical) (mm)
620
A AXIS (head vertical-horizontal rotation)
-90° ÷ +90°
H AXIS (vice position.) (TKE 954 HP) (mm)
6600
P AXIS (vice position.) (TKE 954 HP) (mm)
6600
A axis positioning increases
0,01°
X AXIS (longitudinal) (mm)
7530
ELECTROSPINDLE
Maximum power in S1 (kW)
8.5
Maximum power in S6 (60%) (kW)
10
Maximum speed (rpm)
24000
Maximum torque (Nm)
8
Toolholder cone
HSK – 63F
Water cooling with chiller unit

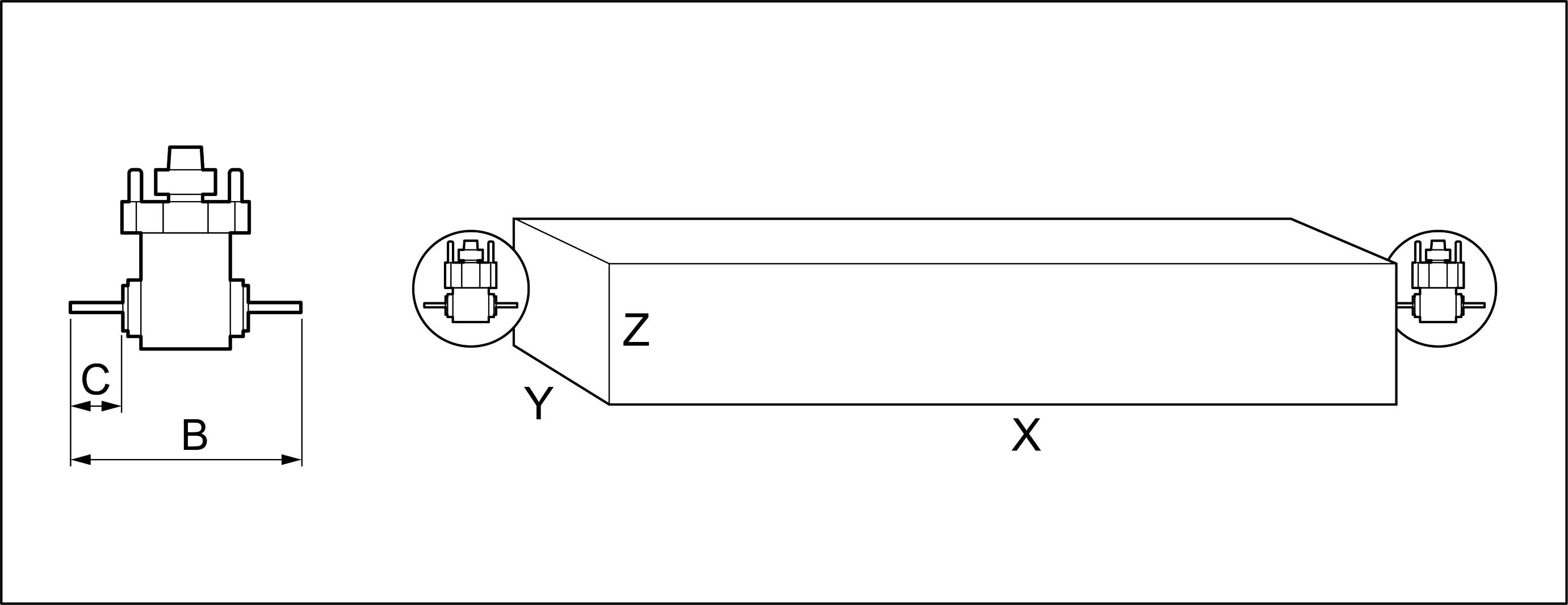

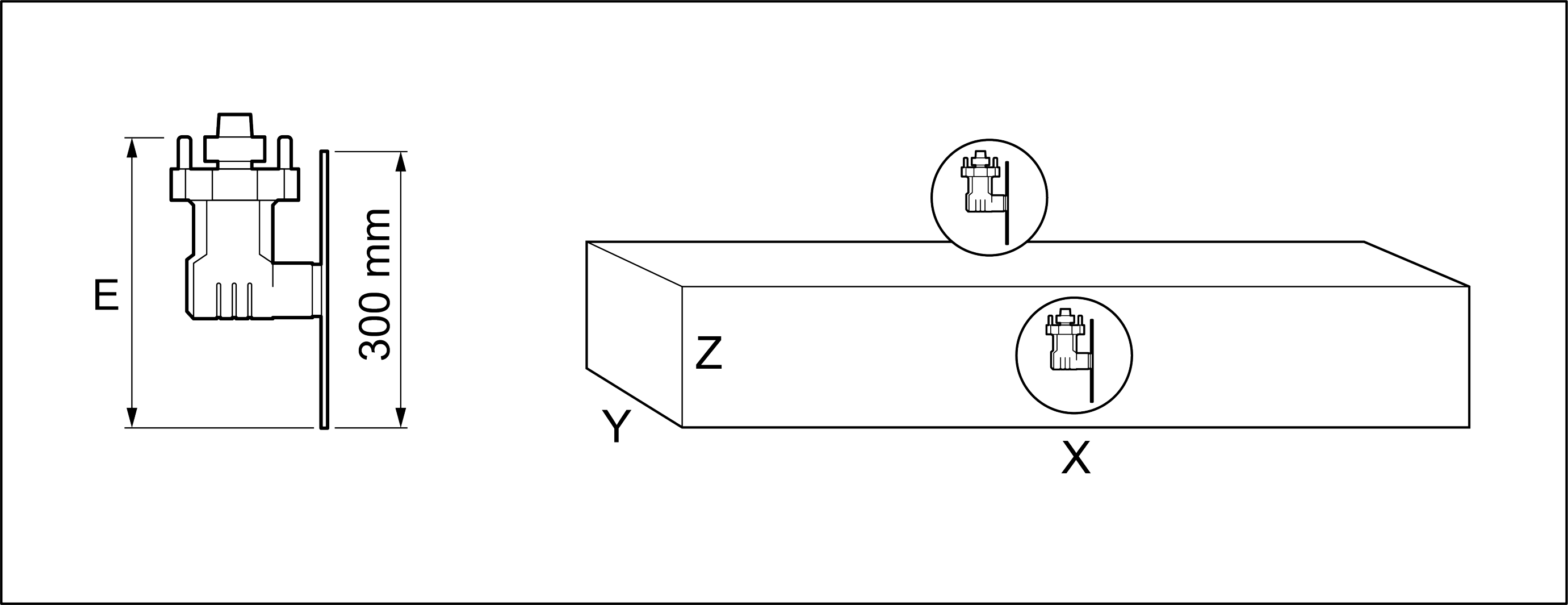

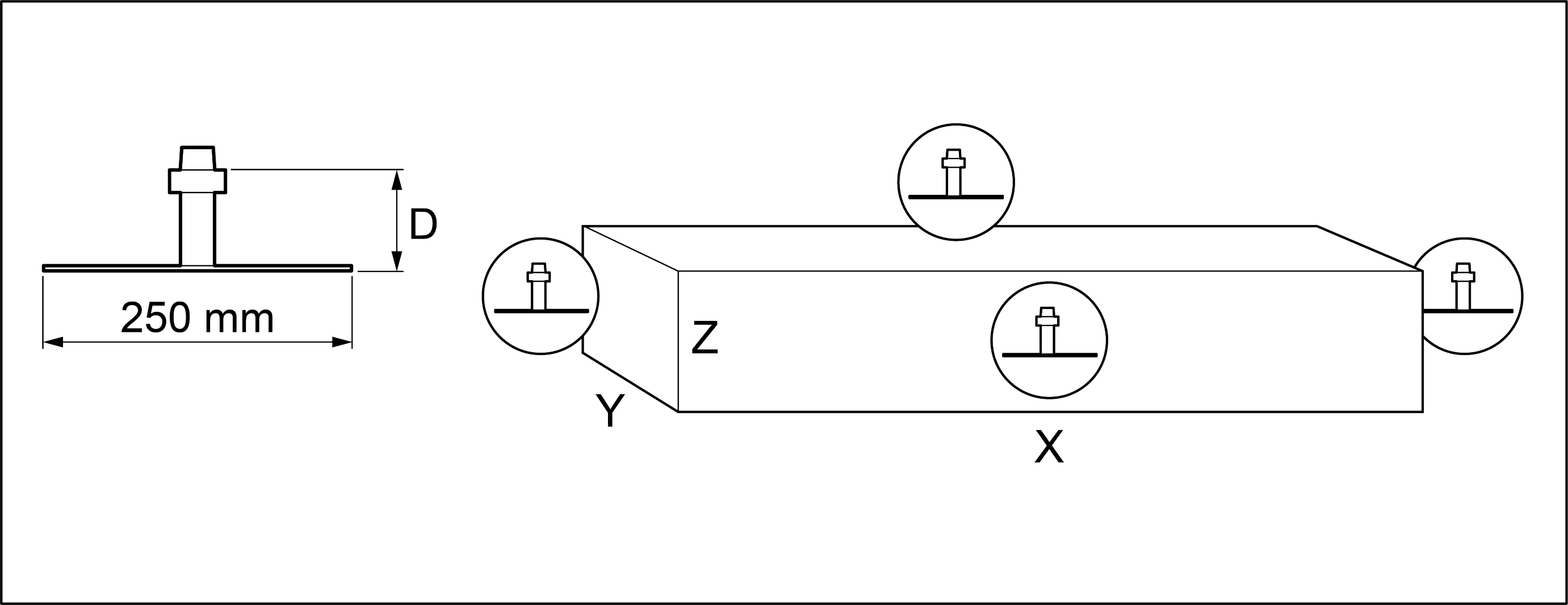

AUTOMATIC TOOL MAGAZINE
Automatic 12-place tool magazine on board the gantry

Number of angle units that can be loaded in the tool magazine
2
Maximum size of tools which can be loaded onto the magazine with – 2 side positions (mm)
Ø = 250 ; L = 200
Maximum size of tools that can be loaded onto the magazine – 10 central positions (mm)
Ø = 80 ; L = 130
Presetting tool device: automatic on-machine tool length measurement

FUNCTIONS
Static double operation (according to model)

Dynamic double operation (according to model)

Basic multi-step machining - up to 5 steps

Automatic management of multi-step mode machining

Extended machining, up to twice the maximum nominal length in X

Multiple probe dimensioning module

Parallel machining of two profiles

Multi-piece and multi-piece swing mode machining

PROFILE POSITIONING
Workpiece reference stops with pneumatic movement
2
Maximum number of reference pneumatic stops
4
Pair of pneumatic central stops with separate vice control system

Counterblock kit for machining aluminium profiles for curtain walls

SAFETY DEVICES AND PROTECTIONS
Enclosure guard of the 4th (rear) side

Photoelectric barrier system to protect access to work zone

Metal enclosure guard on two sides

Local guarding cabin

Laser scanner for work area access protection

WORKPIECE LOCKING
Standard number of pneumatic vices
8
Maximum number of pneumatic vices
12
Maximum number of vices per area
6
Maximum size in Y of the workpiece which can be clamped with 2 standard terminals of 45 mm for three-face machining operations (mm)
460
Automatic vice positioning through X axis

Vice automatic positioning through independent H and P axes (according to model)

Double horizontal hold-down devices on pneumatic vices for the machining of two parallel profiles

Vice opening/closing management with pedal control

Included
Avayable
Full protection cabin

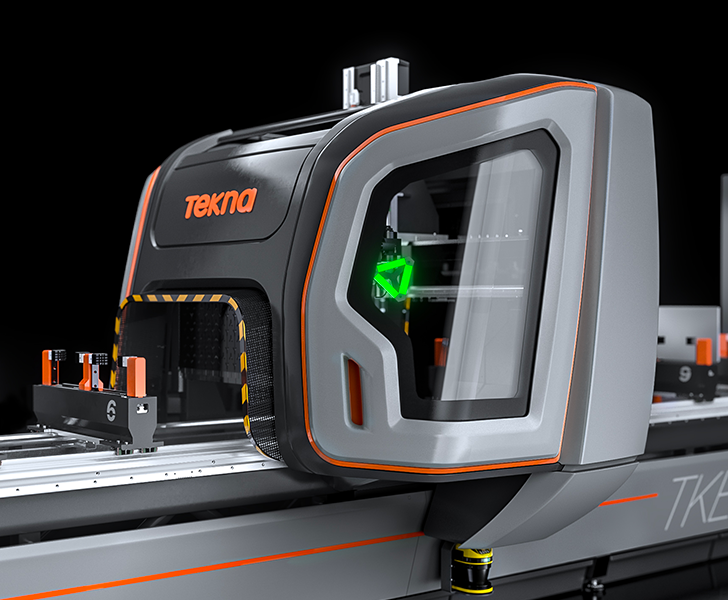

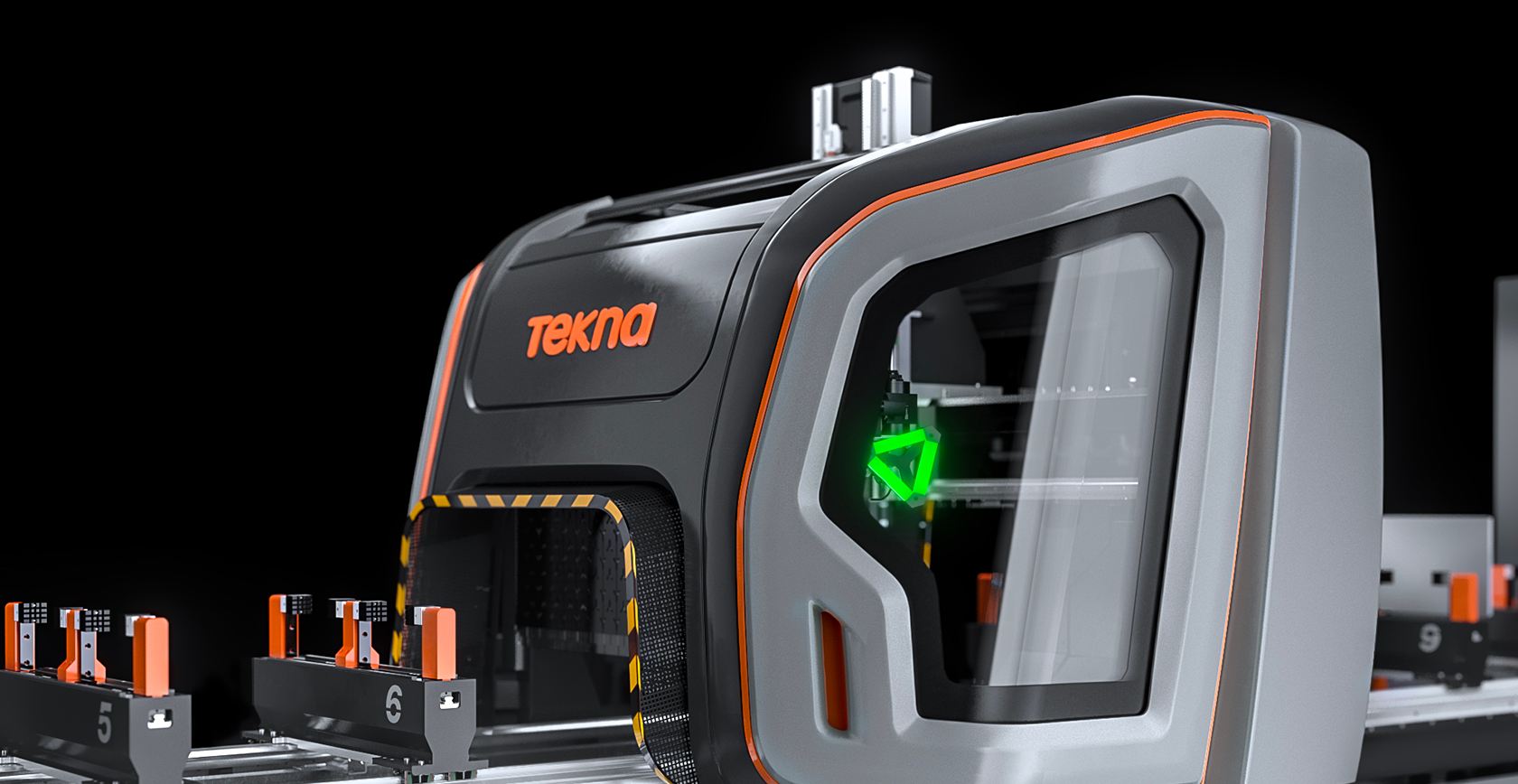

The local guarding cabin has been designed to offer optimal functionality, accessibility and lighting while fulfilling safety and ergonomics requirements. The innovative and refined design makes the machine unique and unmistakeable. Large glass windows allow the operator to monitor the machining operations being executed and a large access to internal areas is provided for cleaning and maintenance operations. The internal structure optimises the conveying of swarf and scraps to the lower side, simplifying the maintenance and cleaning phases on all delicate parts.
Machining Centres TKE 954 Full protection cabin Tekna
Machining Centres TKE 954 Label printer Tekna
Label printer

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.

Tool magazine

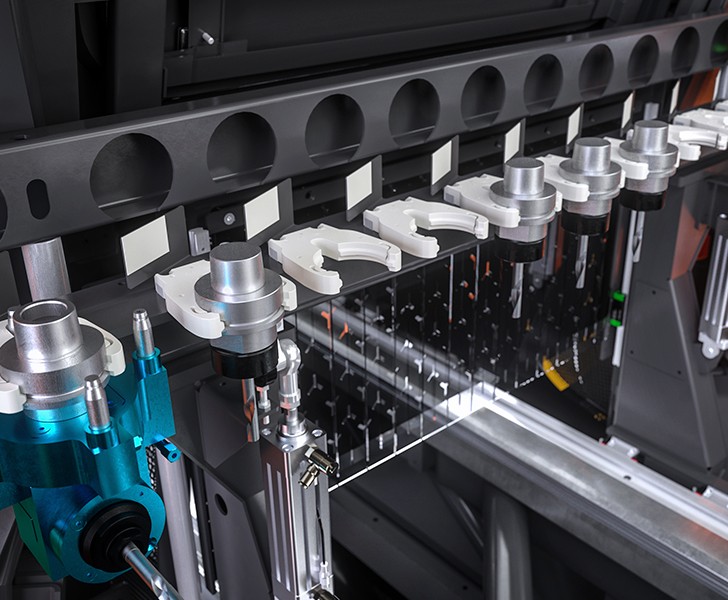

A spacious toolholder magazine with 12 places is installed on board the mobile gantry. The housing includes a tilting system that ensures maximum protection of the toolholder cones from both swarfs and accidental impacts. The magazine has two specific positions to accommodate angle machining head or disc cutter without reducing the total capacity. The position of the magazine on board the gantry allows tool change times to be minimised and dynamic double operation machining to be managed,
Machining Centres TKE 954 Tool magazine Tekna
Machining Centres TKE 954 Vices and dynamic tandem Tekna
Vices and dynamic tandem

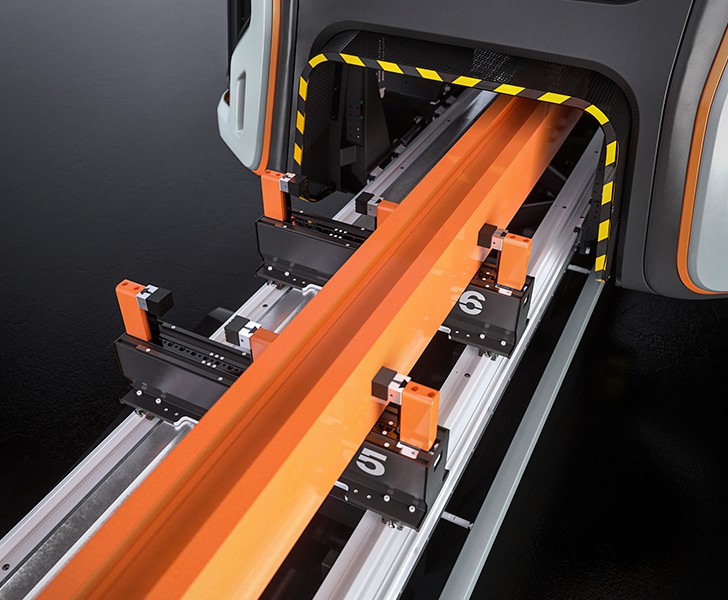

The vice unit can ensure the correct and safe clamping of large aluminium, steel and light alloy profiles. The vice structure, in particular the wide Y stroke, allows the machining of large profiles, thus meeting the typical requirements of industrial and door applications. Each vice unit can be configured with double hold-down device for the machining of two parallel profiles. In the HP version, vice positioning is managed by additional CNC axes. In dynamic double operation mode, the CNC simultaneously manages the movement of the vices and of the mobile gantry in the two separate work areas, thus allows significant increases in productivity.
Electric head (high-power and high-torque spindle)

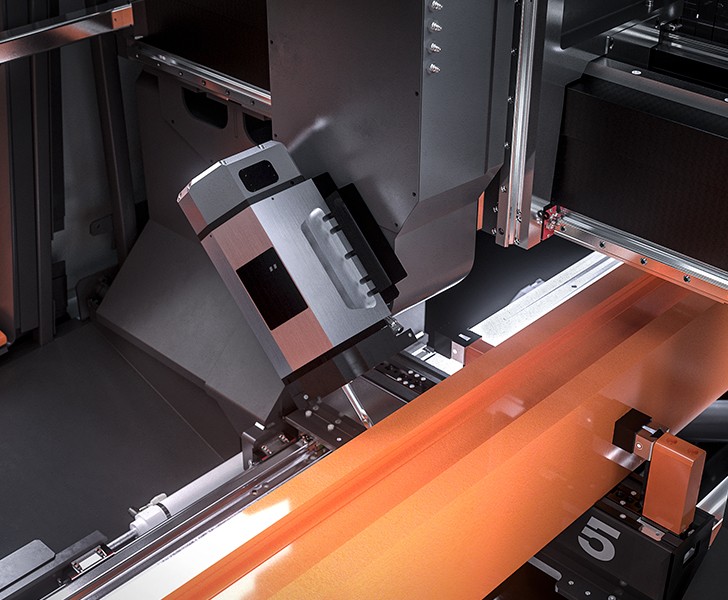

The electrospindle - 8.5 kW in S1 - with HSK-63F toolholder and water cooling with chiller unit, can also perform the heavy-duty machining typical of the industrial sector. Moreover, the high torque ensures easy drilling, milling and cutting operations. The electrospindle movement along A axis performs -90° to +90° rotation, allowing to work on 3 sides of the profile with no need to reposition it. A 10 kW electrospindle with encoder for heavy-duty machining is available as optional.
Machining Centres TKE 954 Electric head (high-power and high-torque spindle) Tekna
Machining Centres TKE 954 Laser scanner Tekna
Laser scanner

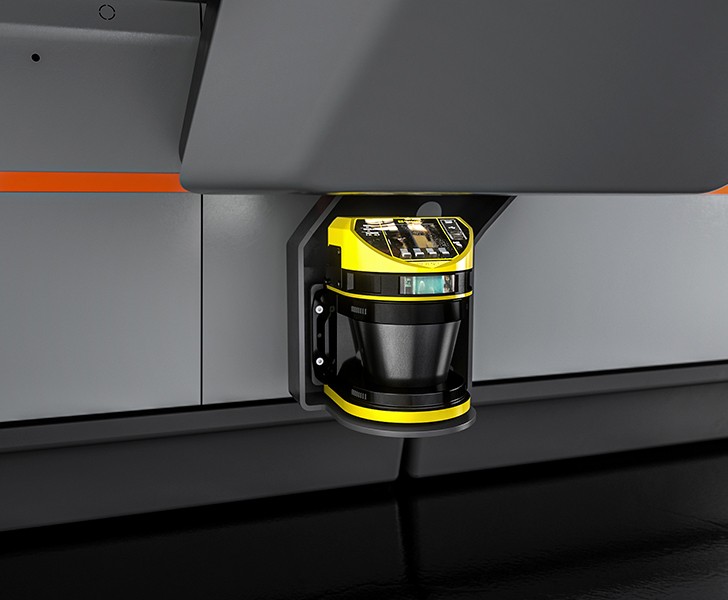

The protection of the operator is entrusted to a monitoring system of the work area with laser scanner. This intelligent control system, together with the absence of fixed references at the centre of the machine, is specially useful in double operation mode, since it allows managing the two work areas with a variable set-up, even asymmetrical. The laser scanner will adapt the controlled surface to the size of each zone, allowing workpieces of different lengths to be machined and taking advantage of the available work area without special structural limitations.
