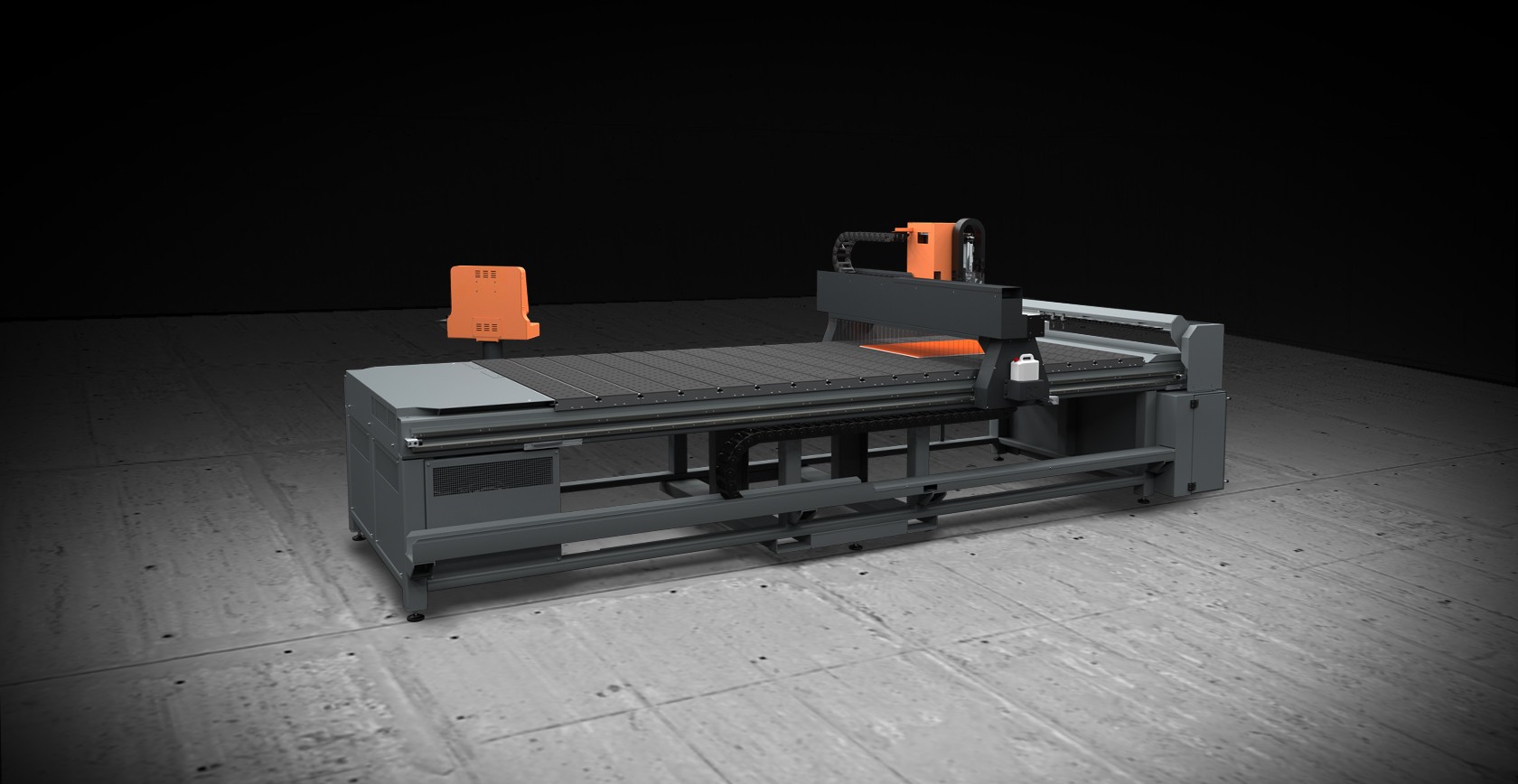

3-axis CNC vertical machining center featured with a clamping system made up of vacuum tables that allow panels and plates to be held by vacuum; this solution is useful to obtain an extremely efficient machining of thin components that could hardly be fixed by means of a traditional clamping system. The machining center is equipped with a series of valves that turn on/off different areas of the machining table, thus concentrating the suction on one area and optimizing the clamping of components with limited dimensions. It is designed for drilling and interpolated milling operations on composite panels, panels and plates in aluminum and steel. To create programs that control the machines, Tekna provides user-friendly software tools that can be used both by professional CNC programmers, who can implement the most complex solutions, and by completely inexperienced users; after a few training hours the customer will be able to operate the machining center using a graphical programming. Software solutions offered by Tekna result from an accurate design and from the actual customer needs analysis. The simplicity of usage of these solutions reduces the management time and costs. The machine is equipped with Fanuc CNC Numerical Control, motors and encoders.

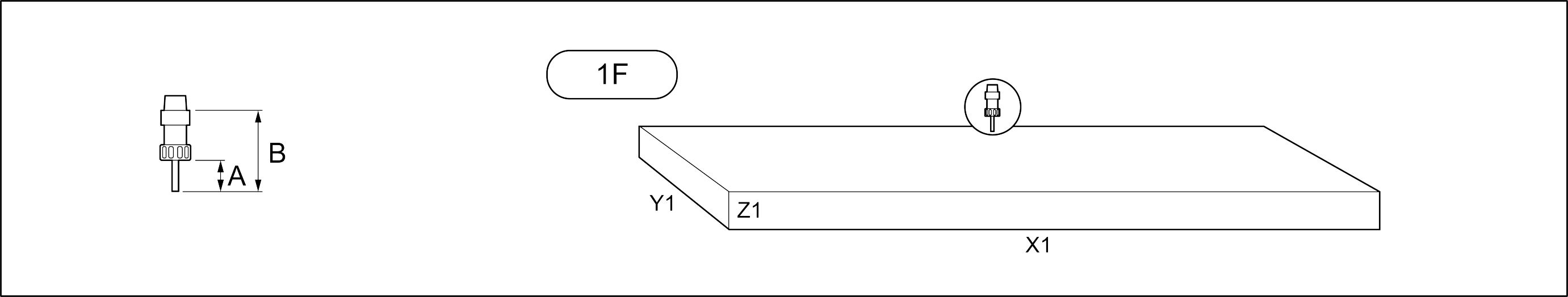

Technical data arrow_drop_down
AXIS STROKES
X AXIS (longitudinal) (mm)
4.000 ; 5.000
Y AXIS (transversal) (mm)
1.600
Z AXIS (vertical) (mm)
100
ELECTROSPINDLE
Maximum power in S1 (kW)
10
Maximum speed (rpm)
24.000
Maximum torque (Nm)
10,2
Toolholder cone (Tekna special piece)
ISO 30
Air cooling with electric fan

WORK AREA
AUTOMATIC TOOL MAGAZINE
Machine on-board 12-place tool magazine

Maximum dimension of the tools that can be loaded into the magazine (mm)
Ø = 80 - L = 165
Presetting tool device: automatic on-machine tool length measurement

SAFETY DEVICES AND PROTECTIONS
Photoelectric barrier system to protect access to work zone

Metal enclosure guard on two sides

Tool magazine mechanically mobile covering

PANEL POSITIONING
Workpiece reference retractable pneumatic stops

Workpiece reference pneumatic stops in X (optional)
2
Workpiece reference pneumatic stops in Y (optional)
3
WORKPIECE LOCKING
Vacuum locking system with suction tables

Automatic management of on/off valves for different worktable areas

Vacuum beam size (mm)
230 x 1.600
MACHINING UNIT
Gantry structure

Electrospindle controlled on 3 axes with the possibility of simultaneous interpolation

Swarf removal system

Swarf exhauster mod. MG2-TP

Tool minimal pressurized oil diffusion lubrication system

Additional automatic filling system of the minimal lubrication system - capacity 15 litres

Centralised automatic lubrication of recirculating ball sliding blocks

Included
Available

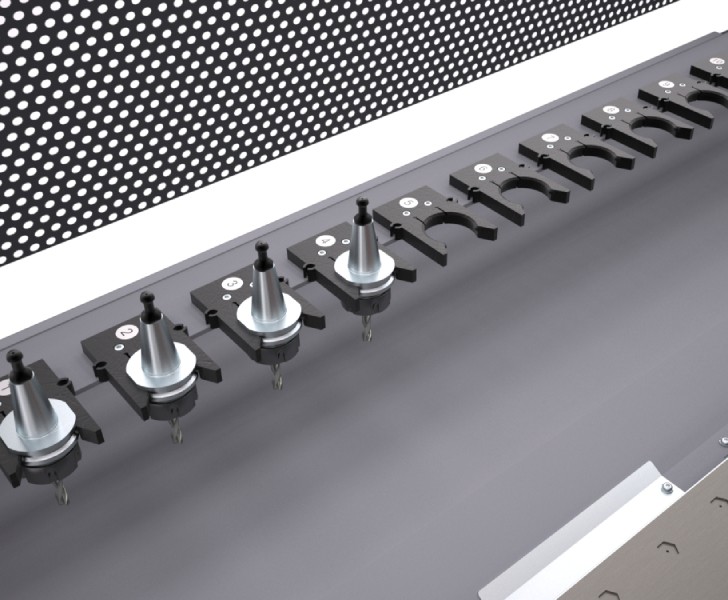

Tool magazine
Fixed 12-place tool magazine on board the machine. A mechanically moved mobile cover protects the tools from swarf and dust produced during machining.
Machining Centres TKE 743 Tool magazine Tekna
Machining Centres TKE 743 Electrospindle Tekna

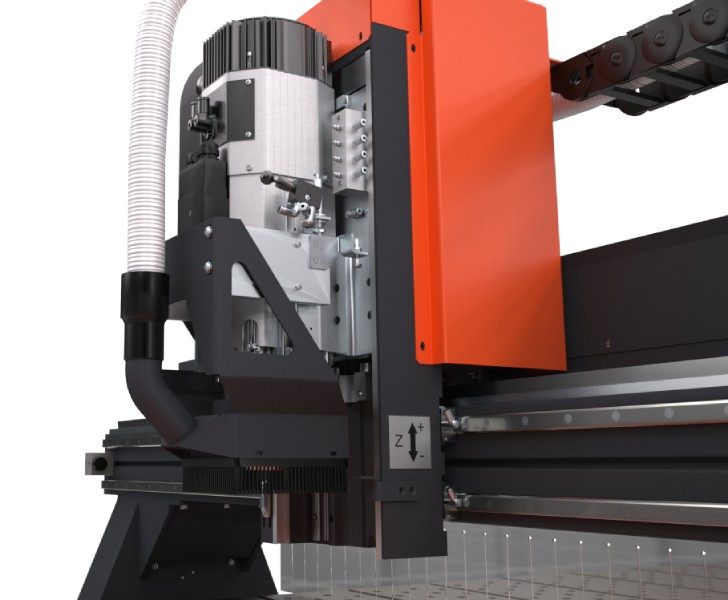

Electrospindle
10 kW S1 high torque electrospindle allows heavy duty machining. It can be used both with some types of extruded steel and with aluminium profiles, thanks to the lubrication system with oil emulsion spray mist or, as an option, with minimal diffusion oil.

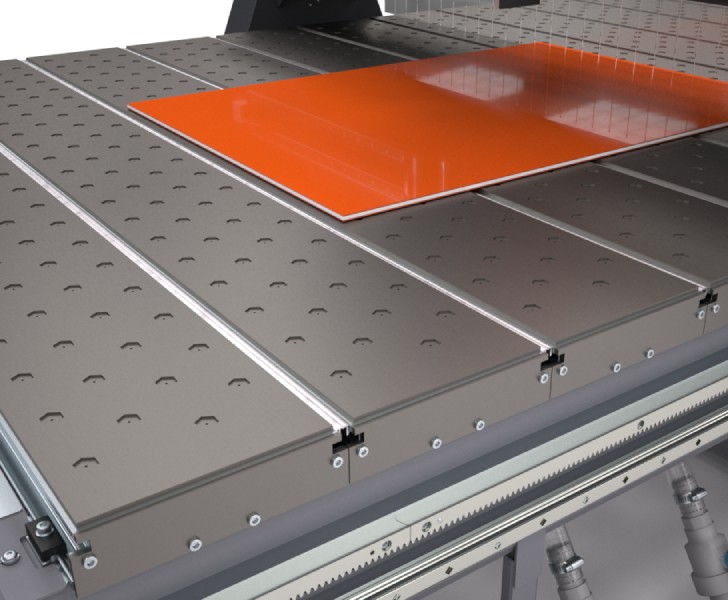

Vacuum table

The panels are clamped in position by a vacuum table. The plastic table is laid over and fixed to the aluminium cross members and provides efficient suction over the entire surface area, while providing protection against the ingress of lubricating liquid. The table is divided into extruded aluminium beams that are switched on/off individually by a valve system, activating the vacuum and locking only the areas where the panels to be clamped are positioned.

Machining Centres TKE 743 Vacuum table Tekna
Machining Centres TKE 743 Swarf removal system Tekna
Swarf removal system
The machining unit has a built-in suction system connected to an industrial extractor. This system effectively removes the machining dust, maintaining the extraction holes free and ensuring high-performance locking. It also makes machine cleaning operations between one load and the next much easier, eliminating much of the swarf that would compromise the correct clamping of the panel to the surface.
Software

The CN6 numeric control management software monitors all the machining centre functions by means of a graphic interface. It includes an ISO language editor and allows viewing the complete workpieces of the set machining operations in 3D. The functions can be extended with the optional NC Tool software, the CAD/CAM system that generates ISO programmes compatible with CN6, which can be combined with the Nesting software to optimise the figures to machine on the panels.

Machining Centres TKE 743 Software Tekna
