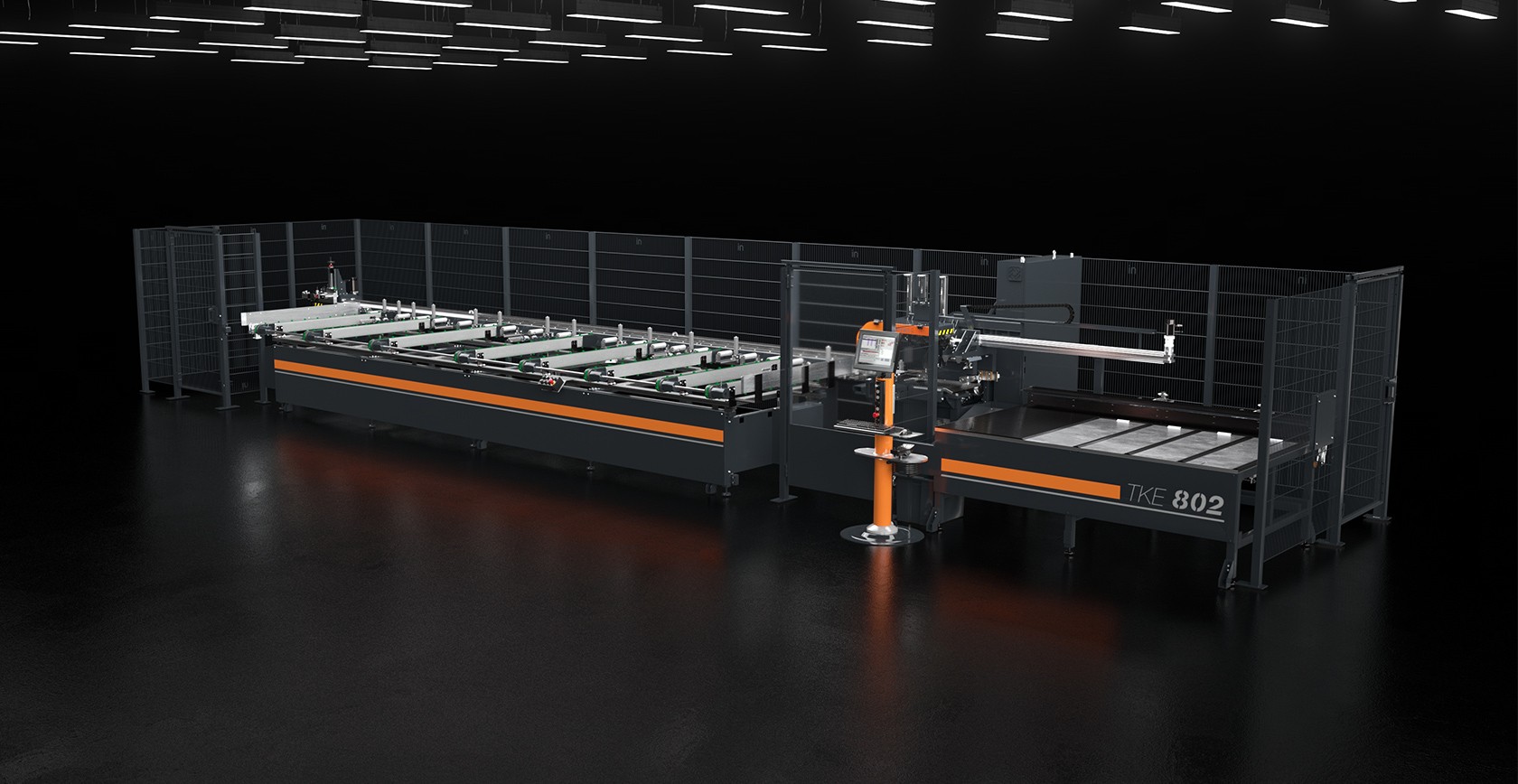

Automatic CNC cutting-off centre with horizontal blade feed, 3 controlled axes, designed for cutting profiles made of aluminium, PVC, light alloys in general. It performs automatic cutting according to predefined and optimized cutting lists. It can perform the bevelled cut on both sides of the profile. The machine is intended to perform cutting at an angle from 45° to 135°. Automatic bar feeder and automatic unloading magazine on the opposite side. It can be fitted with customised horizontal and vertical drilling units for specific automatic machining operations.

Technical data arrow_drop_down
AXIS STROKES

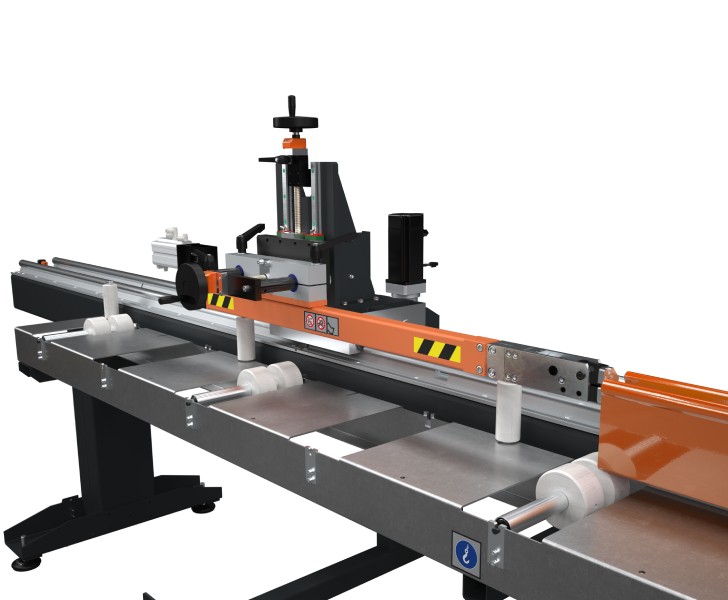

U AXIS (feeder) (mm)
7.500
X AXIS (extractor) (mm)
1.000
B AXIS (angle of blade) (according to version)
45° ÷ 135°; 22°30’ ÷ 157°30’
LOADING UNIT: PROFILE POSITIONING
Belt loading magazine or back-step magazine

Minimum machinable profile section (mm)
30 x 30
Theoretical minimum cutting length (mm)
0
CUTTING UNIT
Widia blade (mm)
Ø = 550
Pre-set for swarf exhauster

Power rating (kW), “three-phase” blade drive motor
3
Minimal oil diffusion lubrication system

Hydro-pneumatic blade feed

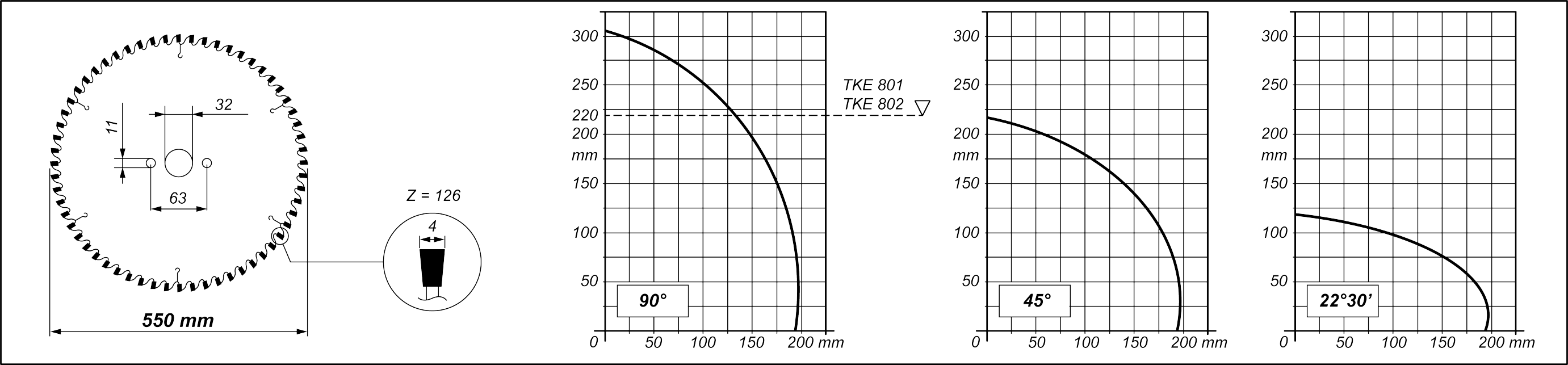

CUTTING DIAGRAM
UNLOADING UNIT:
Unloading workbench with automatic extraction system

Max. profile length that can be unloaded automatically on standard unloading bench (mm)
2.500
SAFETY DEVICES AND PROTECTIONS
Pneumatically-controlled integral guard for cutting area

WORKPIECE LOCKING
Vertical pneumatic vices
3
Vice pressure reduction with pressure gauge

Horizontal pneumatic vice

Included
Available

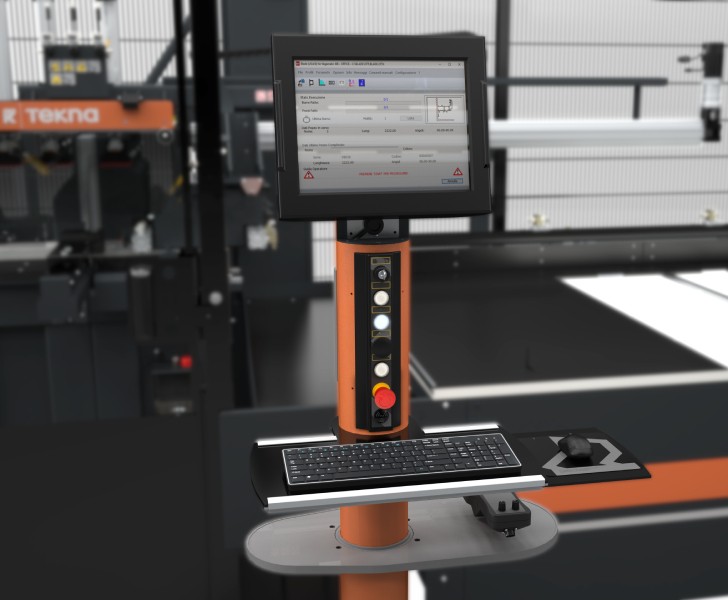

Control

The operator interface with 15" touchscreen display has a network connection, USB ports and a floppy disk drive for communicating with external devices. It also features a built-in control panel, mouse and keyboard, it is preset for the installation of a label printer and connection to a remote control panel. The control is managed by the Windows operating system under which the Job and Blade software packages are installed: Job is designed for the job editor and optimizing cutting lists; Blade, installed alongside Job, controls the machine’s operations and manages the machining processes.

Cutting Centres TKE 802 Control Tekna
Cutting Centres TKE 802 Ejector Tekna

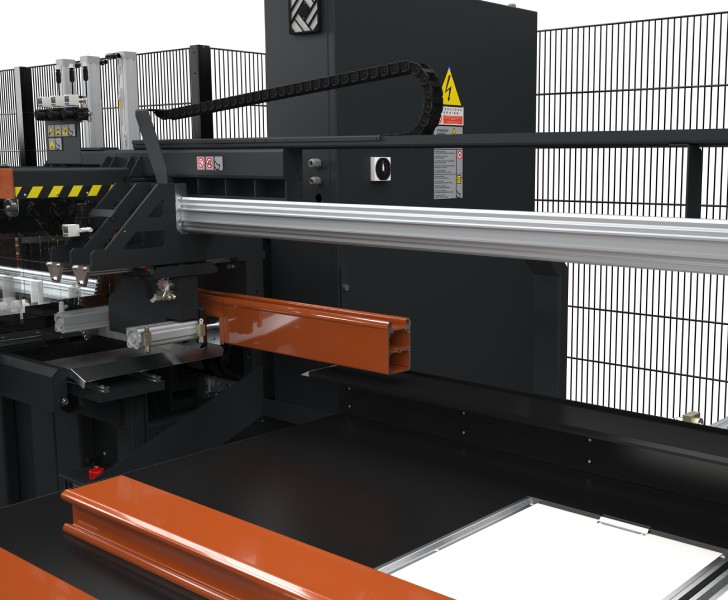

Ejector
The ejector controlled by the CNC grips the workpiece during machining and, once completed, shifts it from the cutting area to the unloading magazine, holding it in the same position so as to facilitate the subsequent machining phases. Motion is transmitted by means of a toothed belt and secure gripping of the workpiece is ensured by pneumatic cylinders.

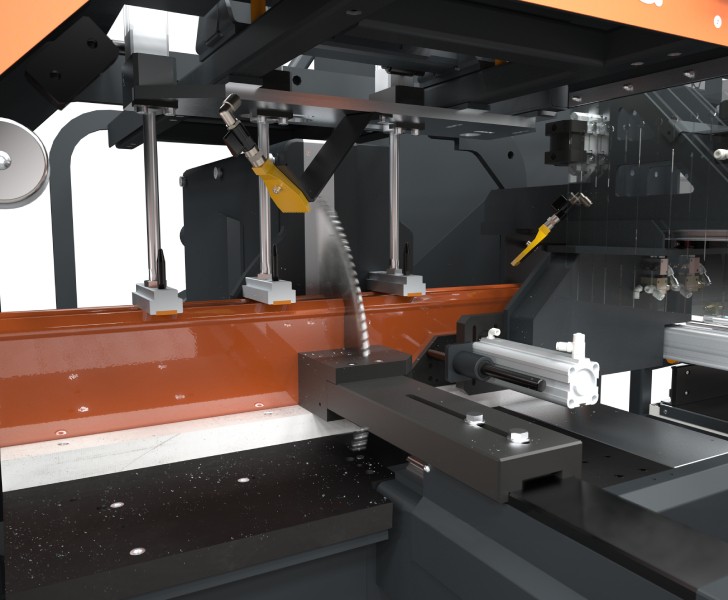

Cutting module
The cutting module consists of a single-head cutting off machine with hydro-pneumatic blade feed. It is provided with a 550 mm blade featuring wide cutting range: from 45° to 135° (from 22°30’ to 157°30’ optional). Setting of the cutting angles is fully automatic and is handled by the CNC.
Cutting Centres TKE 802 Cutting module Tekna
Cutting Centres TKE 802 Loading magazine Tekna

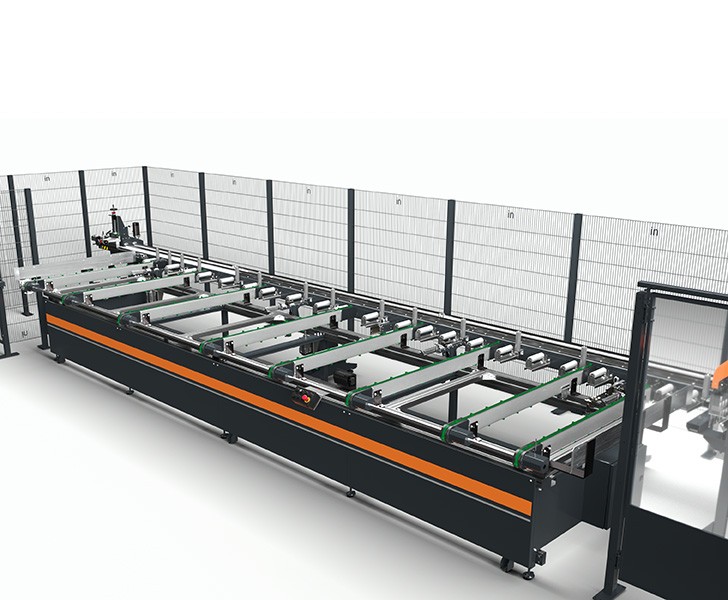

Loading magazine
The machine can feature a back-step or belt loading magazine with automatic bar positioning, which can house profiles having a maximum length of 7.5 metres. The back-step magazine is especially suitable for loading profiles having a section which makes it difficult to keep a stable position during transport. In case of stable profiles, the belt loading magazine allows maximum flexibility and capacity.

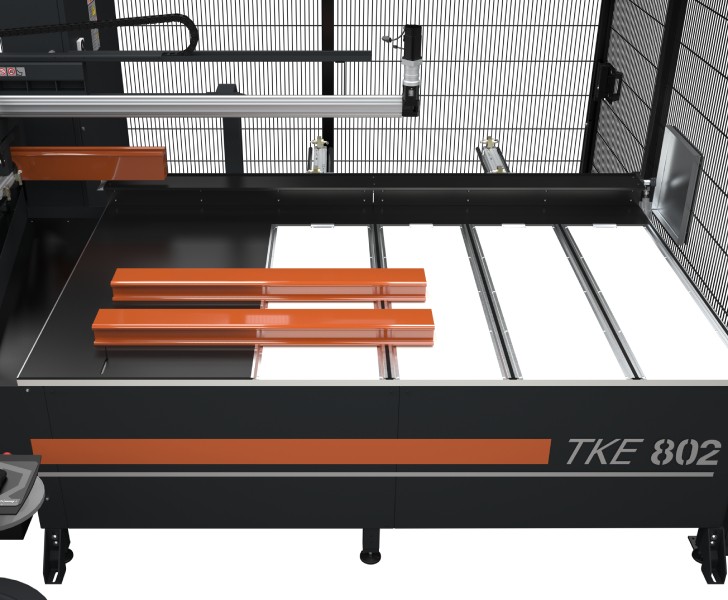

Unloading magazine
The workpiece unloading magazine has an automatic tilting and moving system that enables machining to be performed continuously, thus reducing the cycle time. In addition, the magazine allows finished workpieces to be stacked while a sensor, which emits a signal when the magazine is full, supervises system operation.
Cutting Centres TKE 802 Unloading magazine Tekna
Cutting Centres TKE 802 Label printer Tekna
Label printer (Optional)

The industrial label printer allows each cut profile to be identified with identifying features from the cutting list. In addition, barcode printing enables easy identification of the profile itself, which is particularly useful for subsequent machining steps on Machining Centres or assisted assembly lines.
